Platform Overview

⚙

Server

REST API, WebSocket, session management, audit logging

Spring Boot • Port 8080

🗃

DataServer

ICD-10, CHOP, ATC catalogs, SwissDRG classification data

Spring Boot • Port 8081

⚖

Grouper

SwissDRG, TARPSY, ST Reha real-time grouping engine

Spring Boot • Port 8082

✎

CodingUI

React web interface with 14+ data blocks, multilingual

React / Vite • Port 3000

⇄

COM DLL

In-process HIS integration for .NET, VB6, VBA, C#, Delphi

Windows • KodeMed.dll

⚗

CodingClient

System tray app, WebSocket, webhook, auto-reconnect

Windows • WebView2 • MSI

Security & Compliance

🔒 Authentication

OAuth2 / OpenID Connect (SSO)
Keycloak, Azure AD, Okta compatible
JWT token validation on every request
Per-client credentials (DLL, UI, Portal)

🛡 Data Protection

GDPR Art. 32 — AES encryption at rest
TLS 1.2+ for all network communication
No patient data stored on client
Configurable data retention policies

📑 Audit & Logging

Full audit trail for all coding sessions
User, timestamp, action, IP address
Structured JSON logs (ELK / Splunk ready)
90-day default retention (configurable)

⚙ Container Security

Non-root containers (UID 1000)
Read-only root filesystem
Drop ALL Linux capabilities
Network policies (namespace isolation)

🔑 Licensing

RSA-4096 signed offline license file
Per-component validation (Server, DataServer, Grouper)
License types: DEMO, TRIAL, PRODUCTION
API status: GET /api/v1/license/status

Documentation

Deutsch

Français

Italiano

English

Deutsch

KodeMed GmbH PräsentationPPTX
SystemarchitekturPPTX
IntegrationsleitfadenPPTX
Update- & Lebenszyklus-RichtliniePPTX
OpenShift-BereitstellungsrichtliniePPTX

Français

Présentation KodeMed GmbHPPTX
Architecture du systèmePPTX
Guide d’intégrationPPTX
Politique de mise à jourPPTX
Politique de déploiement OpenShiftPPTX

Italiano

Presentazione KodeMed GmbHPPTX
Architettura del sistemaPPTX
Guida all’integrazionePPTX
Politica di aggiornamentoPPTX
Politica di distribuzione OpenShiftPPTX

English

KodeMed GmbH PresentationPPTX
System ArchitecturePPTX
Integration GuidePPTX
Update & Lifecycle PolicyPPTX
OpenShift Deployment PolicyPPTX

Markdown Documentation

System Architecture MD
Integration Guide MD
Update & Lifecycle Policy MD
OpenShift Deployment Policy MD

Windows Client — Advanced Options

Enterprise deployment (IT administrators)

Silent Install — MSI (GPO / SCCM / Intune)

# Basic — server URL only (language auto-detected, autostart enabled)

msiexec /i KodeMed.msi /quiet /norestart SERVERURL="https://kodemed.hospital.ch"

# Full options — all parameters

msiexec /i KodeMed.msi /quiet /norestart SERVERURL="https://kodemed.hospital.ch" LANGUAGE="de" AUTOSTART=1

# Citrix / shared desktop — disable autostart

msiexec /i KodeMed.msi /quiet /norestart SERVERURL="https://kodemed.hospital.ch" AUTOSTART=0

# Custom install directory

msiexec /i KodeMed.msi /quiet /norestart SERVERURL="https://kodemed.hospital.ch" INSTALLDIR="D:\Apps\KodeMed"

# Silent install with log file (for troubleshooting)

msiexec /i KodeMed.msi /quiet /norestart /l*v "%TEMP%\KodeMed-install.log" SERVERURL="https://kodemed.hospital.ch"

# Uninstall

msiexec /x KodeMed.msi /quiet /norestart

MSI properties: SERVERURL (required) • LANGUAGE — de, fr, it, en (default: auto-detect) • AUTOSTART — 1 or 0 (default: 1) • INSTALLDIR (default: %LOCALAPPDATA%\KodeMed)
Config location: %LOCALAPPDATA%\KodeMed\kodemed-client-config.json • Prerequisites: Windows 10+, WebView2 Runtime (usually pre-installed)

Individual Files

KodeMed.msiDownload
KodeMed.CodingClient.exeDownload
KodeMed.dllDownload
KodeMed.comhost.dll (COM)Download

Linux Server

Server Installation Package

Contains Server, DataServer, GrouperServer, CodingUI, and installer scripts.

kodemed-linux-latest.tar.gzDownload

$ tar -xzf kodemed-linux-latest.tar.gz

$ sudo ./install-kodemed.sh

Docker 24+ Docker Compose 2.x Linux x86_64

Deployment Wizard Docker Compose

This wizard generates a ready-to-use deployment package for your hospital’s on-premise server. Fill in the fields below and click Download ZIP to get:

docker-compose.yml — orchestrates all KodeMed services (Server, DataServer, Grouper, CodingUI, PostgreSQL)
.env — passwords, URLs, and settings (keep this file secure)
runtime-config.js — browser configuration for the CodingUI

1. Public URLs (browser-accessible — used by CodingUI and DLL clients)

These are the URLs your users will access from their browser or DLL client. They must be reachable externally (via reverse proxy, load balancer, or direct).

Server URL (public API URL — e.g., https://kodemed.hospital.ch) DataServer URL (public data API — e.g., https://data.hospital.ch) Grouper URL (public grouper API — e.g., https://grouper.hospital.ch) CodingUI URL (public web UI — e.g., https://coding.hospital.ch)

2. Internal Service URLs (Docker network — usually keep defaults)

These are the internal Docker network URLs used in docker-compose.yml. Keep the defaults unless you use an external reverse proxy or custom network.

Server URL (main API — Spring Boot) DataServer URL (classification data — ICD, CHOP, DRG) Grouper URL (DRG grouping engine) CodingUI URL (React web interface)

3. Database

KodeMed requires PostgreSQL 15+. You can use the bundled container or connect to your hospital’s existing database server.

Use bundled PostgreSQL (recommended for new installations)

DB Host DB Port

DB Name DB User DB Password (required — choose a strong password)

4. Authentication (OIDC / SSO)

Connect KodeMed to your hospital’s identity provider (Keycloak, Azure AD, Okta, etc.) for single sign-on. Leave blank to configure later.

OIDC Issuer URI (e.g., https://sso.hospital.ch/realms/kodemed) OIDC JWK URI (auto-filled from Issuer) Auth enabled

5. Security & Advanced Options

Optional settings for GDPR compliance, CORS, and logging. Sensible defaults are provided — only change if your infrastructure requires it.

Encryption Key (AES key for data at rest — GDPR Art. 32, generate with: openssl rand -base64 32) Admin API Key (DataServer admin endpoint auth — generate with: openssl rand -hex 32) CORS Origins (auto-filled from CodingUI URL) WebSocket Origins (auto-filled from CodingUI URL) Log Level Image Version (Docker image tag from Harbor registry) Loading versions from Harbor... Timezone Swagger URL (API documentation — auto-filled from Server URL)

Quick Start

After downloading the ZIP, deploy on your Linux server:

$ unzip kodemed-deployment.zip

$ docker compose up -d

$ docker compose logs -f # watch startup

All services start automatically. The CodingUI will be available on port 3000. Import classification data via the DataServer admin API (port 8081).

Note: The GrouperServer requires specs/ and catalogues/ directories with SwissDRG/TARPSY/ST Reha specification files. Contact support for the grouper data package, or download from SwissDRG.org.

Technical Documentation Confidential

Integration & API

GetResults() Return Format MD PPTX

Classification Data Import

Official Swiss medical classification data (ICD-10-GM, CHOP, SwissDRG, TARPSY, ST Reha) can be downloaded from the sources below and imported via the DataServer admin API. See the DevOps Guide §14 for details.

ICD-10-GM (BfArM) BfArM.de
CHOP, CIM-10 FR/IT (BFS) BFS.admin.ch
SwissDRG, TARPSY, ST Reha (SwissDRG AG) SwissDRG.org

Deployment Architecture

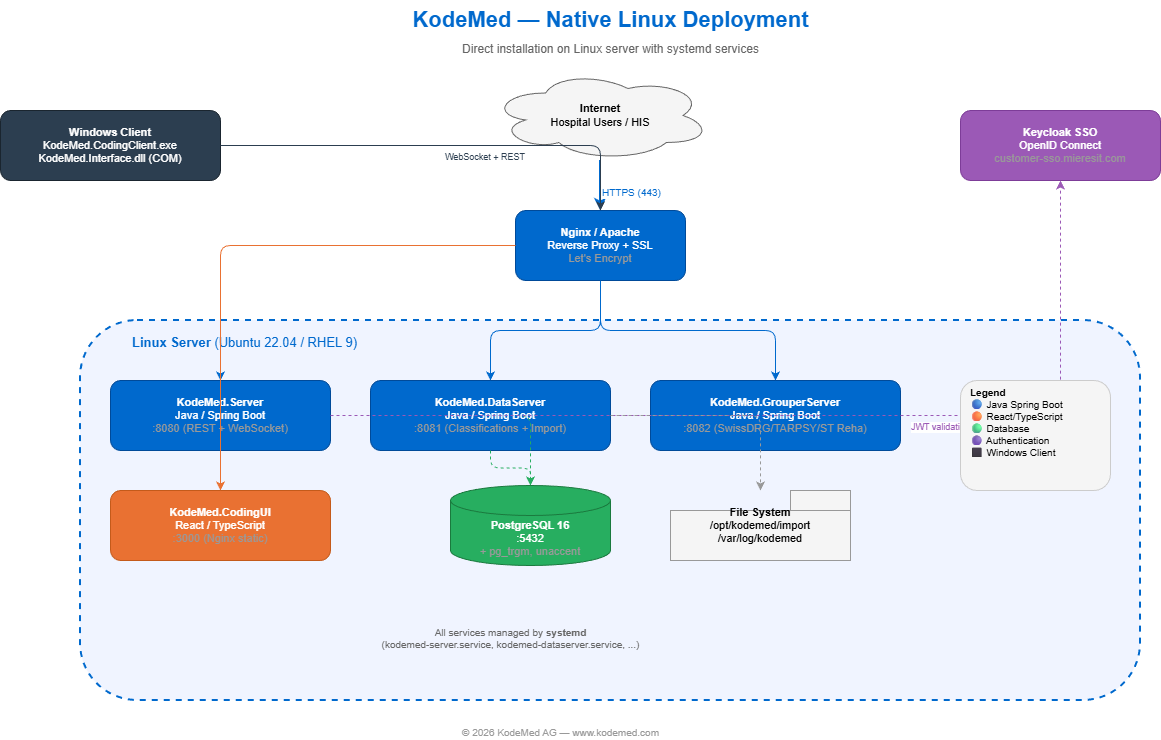

Native Linux PNG

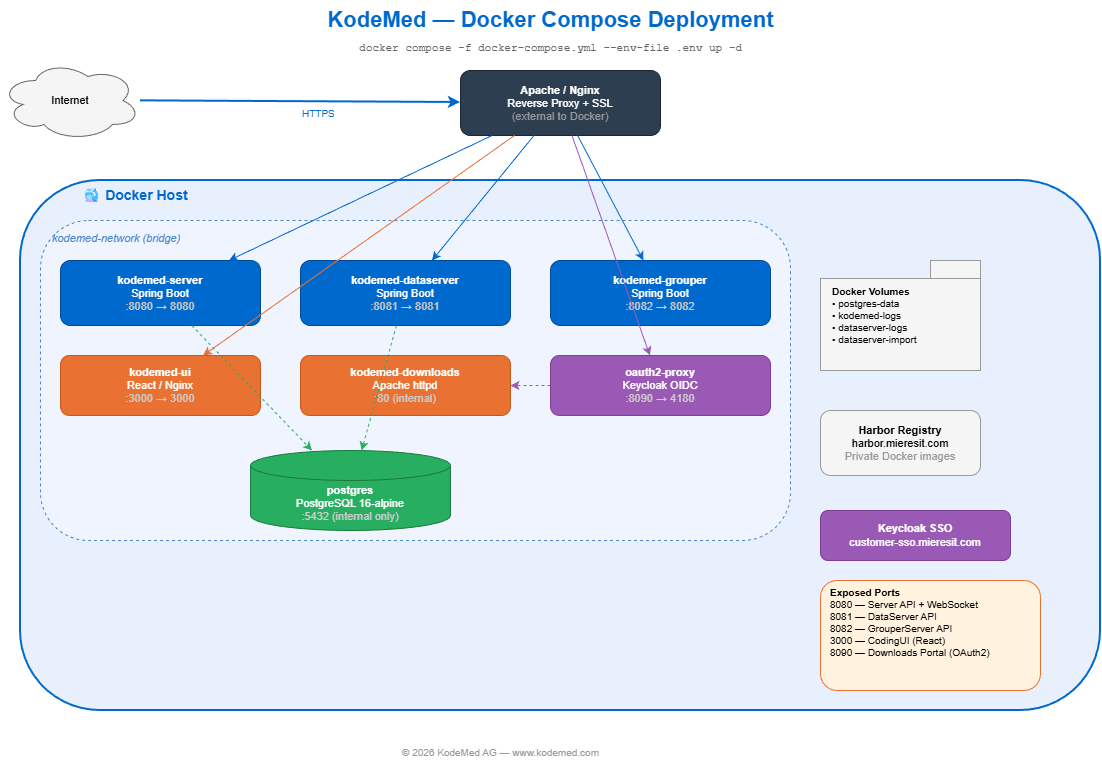

Docker Compose PNG

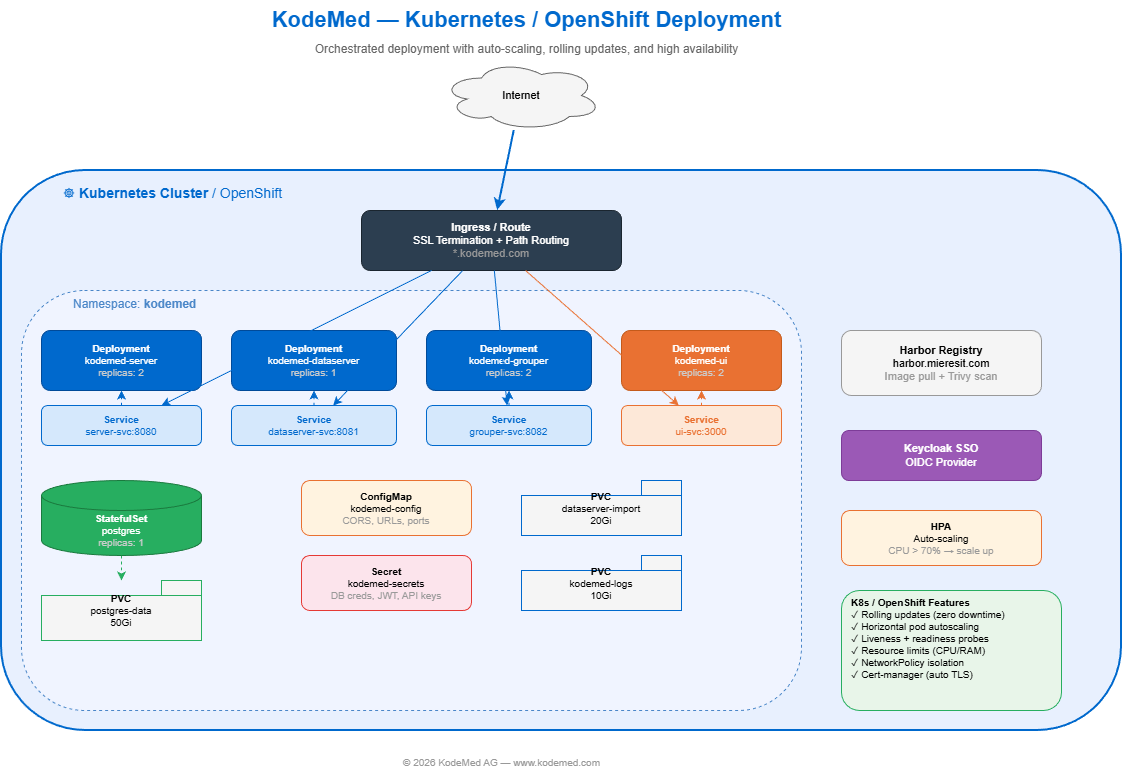

OpenShift / Kubernetes PNG

Source (editable) Draw.io

DevOps Guide Confidential

Server Administration & Deployment

DevOps Guide (DE) PPTX
DevOps Guide (FR) PPTX
DevOps Guide (IT) PPTX
DevOps Guide (EN) PPTX

Markdown Documentation

DevOps & Server Admin Guide MD

Troubleshooting

DLL client opens wrong URL (404 on coding page)

KODEMED_PUBLIC_UI_URL is not set. The server returns its own URL instead of the CodingUI URL.

KODEMED_PUBLIC_UI_URL=https://coding-ui.hospital.ch

The server logs a warning at startup: CONFIG ⚠ KODEMED_PUBLIC_UI_URL is not set

WebSocket returns HTTP 200 instead of 101

Reverse proxy is not upgrading WebSocket connections. Enable mod_proxy_wstunnel (Apache) or add Upgrade headers (nginx).

# Apache

a2enmod proxy_wstunnel rewrite

RewriteCond %{HTTP:Upgrade} websocket [NC]

RewriteRule ^/ws/(.*) ws://localhost:8080/ws/$1 [P,L]

Portal returns 500 on login

Check oauth2-proxy logs: docker compose logs kodemed-downloads-auth

unauthorized_client → Client secret mismatch with OIDC provider
invalid_scope → Remove groups from OAUTH2_PROXY_SCOPE
invalid_redirect_uri → Check redirect URI matches OIDC client config

Server startup configuration warnings

Check logs after deployment:

docker compose logs kodemed-server | grep "CONFIG"

CONFIG ✓ All public URL configuration present — all good
CONFIG ⚠ KODEMED_PUBLIC_* — specific variable is missing

Required Environment Variables

Variable	Required	Purpose
`KODEMED_PUBLIC_UI_URL`	Yes	CodingUI URL for browser redirect
`KODEMED_PUBLIC_SERVER_URL`	Recommended	Server URL for DLL clients
`KODEMED_PUBLIC_DATASERVER_URL`	Recommended	DataServer URL for classification data
`KODEMED_PUBLIC_WEBSOCKET_URL`	Recommended	WebSocket URL for real-time communication
`OIDC_ISSUER_URI`	Yes	OIDC issuer for token validation
`CORS_ALLOWED_ORIGINS`	Yes	Allowed origins for API requests

Sales Materials Confidential

Presentations & Sales Material

KodeMed Sales (DE) PPTX
KodeMed Sales (FR) PPTX
KodeMed Sales (IT) PPTX
KodeMed Sales (EN) PPTX

License Generator Admin + Sales

Generate License File

Fill in the customer details below. The tool generates a signed kodemed.license file ready to send to the customer.

License Type

Organization

Licensee (contact person)

Validity (days)

Max Concurrent Users

Components

CLI Command

Run this on a machine with the private key and the kodemed-license-cli.jar:

Copied!

License CLI Tool

Download the CLI JAR to generate and verify license files.

kodemed-license-cli.jar Download JAR
Quick Reference java -jar kodemed-license-cli.jar generate --private-key key.pem --type DEMO --org "Hospital" --days 90 --output kodemed.license

Configuration Reference

Complete list of all environment variables, settings, and config keys across all KodeMed components. Use the filter to search.

KodeMed Server Port 8080

Main coding API — Spring Boot backend handling DLL sessions, WebSocket, persistence, webhooks.

Environment Variable	Default	Description
`SERVER_PORT`	8080	HTTP server port
`SPRING_PROFILES_ACTIVE`	(none)	Active Spring profiles (use `prod` for production)
`SPRING_DATASOURCE_URL`	jdbc:h2:mem:kodemed	JDBC connection URL (PostgreSQL in prod)
`SPRING_DATASOURCE_USERNAME`	sa	Database username
`SPRING_DATASOURCE_PASSWORD`	(empty)	Database password
`SPRING_DATASOURCE_DRIVER_CLASS_NAME`	org.h2.Driver	JDBC driver class (org.postgresql.Driver in prod)
`SPRING_DATASOURCE_HIKARI_MAXIMUM_POOL_SIZE`	15	HikariCP max connection pool size
`SPRING_DATASOURCE_HIKARI_MINIMUM_IDLE`	5	HikariCP minimum idle connections
`SPRING_DATASOURCE_HIKARI_IDLE_TIMEOUT`	300000	HikariCP idle timeout (ms)
`SPRING_DATASOURCE_HIKARI_CONNECTION_TIMEOUT`	20000	HikariCP connection timeout (ms)
`SPRING_JPA_HIBERNATE_DDL_AUTO`	update	Hibernate DDL strategy (consider `validate` for prod)
`KODEMED_AUTH_ENABLED`	true	Enable/disable OAuth2 authentication
`SPRING_SECURITY_OAUTH2_RESOURCESERVER_JWT_ISSUER_URI`	(Keycloak URL)	OIDC issuer URI for JWT validation
`SPRING_SECURITY_OAUTH2_RESOURCESERVER_JWT_JWK_SET_URI`	(Keycloak certs URL)	JWK Set URI for JWT validation
`CORS_ALLOWED_ORIGINS`	(empty)	Comma-separated CORS allowed origins
`WEBSOCKET_ALLOWED_ORIGINS`	(empty)	WebSocket allowed origins
`KODEMED_ENCRYPTION_KEY`	(empty)	AES-256 key (base64, 32 bytes). Generate: `openssl rand -base64 32`
`KODEMED_LICENSE_FILE`	(auto-search)	Path to kodemed.license file
`KODEMED_PUBLIC_SERVER_URL`	(auto-detected)	Public URL for the server API (returned to DLL)
`KODEMED_PUBLIC_DATASERVER_URL`	(auto-detected)	Public URL for DataServer (returned to DLL)
`KODEMED_PUBLIC_WEBSOCKET_URL`	(auto-detected)	Public WebSocket URL wss:// (returned to DLL)
`KODEMED_PUBLIC_UI_URL`	(auto-detected)	Public URL for CodingUI (returned to DLL)
`KODEMED_OAUTH2_REALM`	kodemed	OAuth2 realm name (returned to DLL)
`KODEMED_OAUTH2_CLIENT_ID`	kodemed-dll	OAuth2 client ID for DLL authentication
`KODEMED_PERSISTENCE_ENABLED`	true	Enable persistent storage of coding sessions
`KODEMED_AUDIT_ENABLED`	true	Enable audit trail (requires persistence)
`KODEMED_RETENTION_DAYS`	90	Retention for completed sessions (days, 0=forever)
`KODEMED_STORE_ORIGINAL`	true	Store original case data alongside changes
`KODEMED_PERSISTENCE_SESSION_EXPIRY_MINUTES`	60	Session expiry timeout (minutes)
`KODEMED_PERSISTENCE_OFFLINE_TIMEOUT_MINUTES`	15	Sessions without heartbeat expire after this (minutes)
`KODEMED_HOOK_ENABLED`	false	Enable post-coding webhook
`KODEMED_HOOK_URL`	(empty)	Webhook target URL
`KODEMED_HOOK_AUTH_TYPE`	none	Webhook auth: `none`, `bearer`, `header`
`KODEMED_HOOK_TIMEOUT_SECONDS`	30	Webhook HTTP timeout (seconds)
`KODEMED_HOOK_RETRY_COUNT`	3	Webhook retry count on failure
`KODEMED_HOOK_INCLUDE_RESULT_DATA`	false	Include result data in webhook payload
`KODEMED_HOOK_INCLUDE_ORIGINAL_DATA`	false	Include original data in webhook payload
`KODEMED_HOOK_INCLUDE_GROUPER_RESULTS`	false	Include DRG grouper results in webhook payload
`KODEMED_HOOK_EVENTS`	applied	Comma-separated event types to fire webhook on
`KODEMED_RATE_LIMIT_ENABLED`	true	Enable rate limiting (DoS protection)
`KODEMED_RATE_LIMIT_CAPACITY`	100	Token bucket capacity per IP
`INSTANCE_DISCONNECT_TIMEOUT`	60	Minutes before disconnected DLL instance is terminated
`HEARTBEAT_INTERVAL`	30	WebSocket heartbeat interval (seconds)
`RECONNECT_INTERVAL`	60	DLL WebSocket reconnect interval (seconds)
`KODEMED_DATASERVER_PORT`	8081	DataServer port (used to derive internal URL)
`KODEMED_UI_URL`	(empty)	CodingUI URL for redirects (e.g. https://coding.hospital.ch)
`SWAGGER_SERVER_URL`	(empty)	Swagger UI base URL (useful behind reverse proxy)
`SWAGGER_OAUTH2_CLIENT_ID`	kodemed-server	OAuth2 client ID for Swagger UI
`TABLE_PREFIX`	km_app_	Database table prefix
`LOGGING_LEVEL_ROOT`	INFO	Root log level (WARN in prod profile)
`MANAGEMENT_ENDPOINTS`	health,info,metrics,prometheus	Exposed Spring Actuator endpoints

KodeMed DataServer Port 8081

Data import/export service — ICD-10, CHOP, thesaurus, hot-folder import.

Environment Variable	Default	Description
`DATASERVER_PORT` / `SERVER_PORT`	8081	HTTP port (DATASERVER_PORT takes priority)
`SPRING_DATASOURCE_URL`	jdbc:h2:mem:kodemed	JDBC connection URL
`SPRING_DATASOURCE_USERNAME`	sa	Database username
`SPRING_DATASOURCE_PASSWORD`	(empty)	Database password
`KODEMED_AUTH_ENABLED`	true	Enable/disable OAuth2 authentication
`KODEMED_ADMIN_API_KEY`	(empty)	API key for admin endpoints (import/reimport scripts). Generate: `openssl rand -hex 32`
`KODEMED_LICENSE_FILE`	(auto-search)	Path to kodemed.license file
`KODEMED_IMPORT_ENABLED`	true	Enable hot-folder import system
`KODEMED_IMPORT_AUTO_SCAN`	false	Auto-scan inbox on timer (disabled by default for safety)
`KODEMED_IMPORT_BASEDIR`	./import	Base directory for import files
`KODEMED_IMPORT_INBOX_DIR`	./import/inbox	Inbox — place files here for processing
`KODEMED_IMPORT_SUCCESS_DIR`	./import/success	Success — processed files moved here
`KODEMED_IMPORT_ERROR_DIR`	./import/error	Error — failed files moved here
`KODEMED_IMPORT_SCAN_INTERVAL_MS`	30000	Scan interval in ms (only when auto-scan=true)
`KODEMED_IMPORT_BATCH_SIZE`	1000	Batch size for data imports
`KODEMED_THESAURUS_BATCH_SIZE`	2000	Batch size for thesaurus index inserts
`KODEMED_THESAURUS_AUTO_BUILD`	true	Auto-build thesaurus on startup
`TABLE_PREFIX`	km_data_	Database table prefix (different from Server!)
`CORS_ALLOWED_ORIGINS`	(empty)	CORS allowed origins
`SWAGGER_SERVER_URL`	(empty)	Swagger UI base URL
`SWAGGER_OAUTH2_CLIENT_ID`	kodemed-server	OAuth2 client ID for Swagger UI
`LOGGING_LEVEL_ROOT`	INFO	Root log level
`MANAGEMENT_ENDPOINTS`	health,info,metrics,prometheus,caches	Actuator endpoints (includes cache management)

KodeMed GrouperServer Port 8082

DRG grouper — stateless service for SwissDRG, TARPSY, ST Reha grouping. No database required.

Environment Variable	Default	Description
`SERVER_PORT`	8082	HTTP port
`GROUPER_AUTH_ENABLED`	true	Enable/disable auth (NOT KODEMED_AUTH_ENABLED!)
`GROUPER_SPECS_PATH`	./specs	Path to grouper specification files (.sgs)
`GROUPER_CATALOGUE_PATH`	./catalogues	Path to catalogue files (.csv) for cost weights
`GROUPER_DEFAULT_SWISSDRG`	15.0	Default SwissDRG version
`GROUPER_DEFAULT_TARPSY`	6.3	Default TARPSY version
`GROUPER_DEFAULT_STREHA`	3.4	Default ST Reha version
`KODEMED_LICENSE_FILE`	(auto-search)	Path to kodemed.license file
`CORS_ALLOWED_ORIGINS`	(empty)	CORS allowed origins
`SWAGGER_SERVER_URL`	(empty)	Swagger UI base URL
`SWAGGER_OAUTH2_CLIENT_ID`	kodemed-server	OAuth2 client ID for Swagger UI
`LOGGING_LEVEL_ROOT`	INFO	Root log level
`LOGGING_LEVEL_COM_MIERESIT_GROUPER`	INFO	Grouper application log level
`LOGGING_LEVEL_SWISSDRG`	INFO	SwissDRG library log level
`MANAGEMENT_ENDPOINTS`	health,info,metrics,prometheus	Actuator endpoints

KodeMed CodingUI Port 3000

React frontend served via nginx. Configured at runtime via runtime-config.js.

Config Key	Source	Description
window.__KODEMED_CONFIG__ (runtime-config.js — injected at deploy time)
`apiUrl`	runtime-config.js	Main server API URL (e.g. https://server.hospital.ch/api/v1)
`dataServerUrl`	runtime-config.js	DataServer URL (e.g. https://data.hospital.ch)
`grouperServerUrl`	runtime-config.js	GrouperServer URL (reserved, UI proxies via Server)
`wsUrl`	runtime-config.js	WebSocket URL (e.g. wss://server.hospital.ch/ws/dll)
`oauth2Url`	runtime-config.js	OAuth2/Keycloak base URL (e.g. https://sso.hospital.ch)
`oauth2Realm`	runtime-config.js	OAuth2 realm name (e.g. kodemed)
`oauth2ClientId`	runtime-config.js	OAuth2 client ID (e.g. kodemed-ui)
URL Query Parameters (injected by DLL when opening embedded browser)
`apiUrl`	URL param	Override API URL
`wsUrl`	URL param	Override WebSocket URL
`dataServerUrl`	URL param	Override DataServer URL
`oauth2Url`	URL param	Override OAuth2 base URL
`oauth2Realm`	URL param	Override OAuth2 realm
`oauth2ClientId`	URL param	Override OAuth2 client ID
`lang`	URL param	UI language (de, fr, it)
`classificationVersion`	URL param	Classification year (e.g. 2026)
Config Resolution Priority: URL params > runtime-config.js > VITE_* build vars > /api/v1/config > defaults

KodeMed DLL/Client C# Desktop

Windows desktop DLL integration. Config file: kodemed-client-config.json (next to DLL or %APPDATA%\KodeMed\).

JSON Key	Default	Description
`serverUrl`	(required)	KodeMed Server URL (e.g. https://kodemed.hospital.ch)
`codingUIUrl`	(from server)	CodingUI URL (fetched from /api/v1/config if not set)
`oauth2Url`	(from server)	OAuth2/Keycloak base URL
`oauth2Realm`	kodemed	OAuth2 realm name
`oauth2ClientId`	kodemed-dll	OAuth2 client ID for desktop auth
`language`	(system)	UI language override (de, fr, it)
`webSocketAutoReconnect`	true	Auto-reconnect WebSocket on disconnect
`webSocketReconnectIntervalSeconds`	60	Reconnect interval (seconds, min 5)
`webSocketHeartbeatIntervalSeconds`	30	Heartbeat interval (seconds)
hook sub-object (post-coding webhook — auth credentials stored locally, NOT on server)
`hook.enabled`	(from server)	Override: enable/disable webhook
`hook.url`	(from server)	Override: webhook target URL
`hook.authType`	(from server)	Auth type: none, bearer, header
`hook.authToken`	(local only)	Bearer token for webhook auth (SENSITIVE)
`hook.authHeaderName`	(local only)	Custom header name (SENSITIVE)
`hook.authHeaderValue`	(local only)	Custom header value (SENSITIVE)

Important Notes

GROUPER_AUTH_ENABLED vs KODEMED_AUTH_ENABLED: GrouperServer uses its own namespace. Server and DataServer use KODEMED_AUTH_ENABLED.
TABLE_PREFIX: Server uses km_app_, DataServer uses km_data_. Both share the same PostgreSQL database.
LOGGING_LEVEL_ROOT is the correct Spring Boot env var (not LOG_LEVEL).
KODEMED_LICENSE_FILE: If not set, services search: ./kodemed.license, /etc/kodemed/, %APPDATA%/KodeMed/.
KODEMED_ENCRYPTION_KEY: Only used by Server. DataServer and GrouperServer do not encrypt data at rest.
Webhook auth credentials (token, header) are stored in the DLL config only, never on the server. The server only stores non-sensitive webhook settings.

Health Check & Smoke Test Endpoints

Use these public endpoints (no authentication required) to verify your deployment:

Service	Endpoint	Expected Response
Server	`GET /actuator/health`	`{"status":"UP"}`
Server	`GET /api/v1/config`	JSON with `serverUrl`, `dataServerUrl`, version info
DataServer	`GET /actuator/health`	`{"status":"UP"}`
DataServer	`GET /api/v1/health`	JSON with `"UP"` status, service name, version
GrouperServer	`GET /actuator/health`	`{"status":"UP"}`
GrouperServer	`GET /api/v1/grouper/versions`	JSON with loaded grouper versions (SwissDRG, TARPSY, ST Reha)
All services	`GET /api/v1/license/status`	License status (VALID / EXPIRED / INVALID)

HTTP 402 on any endpoint means the license is invalid or missing. Check KODEMED_LICENSE_FILE path and verify with: java -jar kodemed-license-cli.jar verify --public-key kodemed-public.pem --license kodemed.license

Platform Overview

Server

DataServer

Grouper

CodingUI

COM DLL

CodingClient

Security & Compliance

🔒 Authentication

🛡 Data Protection

📑 Audit & Logging

⚙ Container Security

🔑 Licensing

Documentation

Deutsch

Français

Italiano

English

Markdown Documentation

Windows Client

MSI Installer

Windows Client — Advanced Options

Silent Install — MSI (GPO / SCCM / Intune)

Individual Files

Linux Server

Server Installation Package

Support

Deployment Wizard Docker Compose

Quick Start

Technical Documentation Confidential

Integration & API

Classification Data Import

Deployment Architecture

DevOps Guide Confidential

Server Administration & Deployment

Markdown Documentation

Troubleshooting

Required Environment Variables

Sales Materials Confidential

Presentations & Sales Material

License Generator Admin + Sales

Generate License File

CLI Command

License CLI Tool

Configuration Reference

KodeMed Server Port 8080

KodeMed DataServer Port 8081

KodeMed GrouperServer Port 8082

KodeMed CodingUI Port 3000

KodeMed DLL/Client C# Desktop

Important Notes

Health Check & Smoke Test Endpoints
